串列推力圆柱滚子轴承

串列推力圆柱滚子轴承

串列推力圆柱滚子轴承

  我公司开发生产的串列推力圆柱滚子轴承具有径向截面尺寸小,结构紧凑,轴向载荷能力大,每列滚子载荷均匀,耐磨,振动噪声小和寿命长等特点,是平行双螺杆挤出机的理想螺杆主轴轴承。用户根据螺杆中心距、空间和负荷大小在本公司样本中选择二、三、四、五、六、七或八列串列轴承。本公司也承接样本以外尺寸和结构的串列轴承。

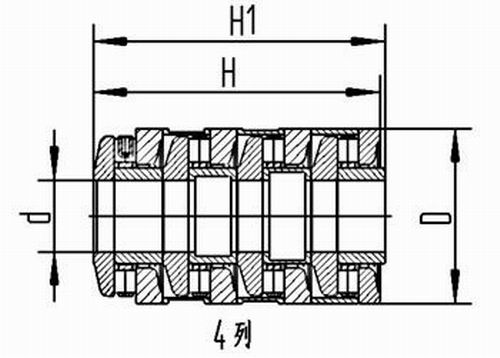

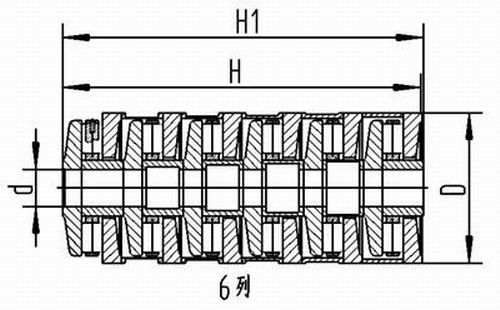

  串列轴承有以下结构型式:


  基本型串列轴承,是通过弹性隔圈将轴圈、座圈和滚子-保持架组件联结。该型轴承为分离型结构,零件可拆卸,使用时务须按照我公司提供的编号次序精心安装、拆卸。


  我公司产品带轴型串列轴承,是一种变型结构轴承,在基本型串列轴承的内孔中穿一根轴,并用弹性锁圈将轴承固定于轴上。该型轴承零件不可分离,使用时总体装卸,十分便利。带轴型串列轴承于2000年获得,同年被省科技厅评为高新技术产品。


  带套筒型串列轴承,在基本型串列轴承的外面套有套筒,使用时总体装卸.


轴承代号外形尺寸(mm)列数额定负荷(KN)重量(Kg)
新代号旧代号dDHH1
CaCoa
M3CT420T3AR4204203232317420.053
M5CT420T5AR4204205454526690.086
M6CT420T6AR4204206565629830.106
M6CT424T6AR42442462606421120.16
M6CT424X1T6AR424X142462606421120.16
M4CT527T4AR5275275251435.283.60.155
M4CT527ET4AR527E52752514491210.142
M5CT527T5AR52752765645591510.21
M6CT527T6AR52752778776651730.22
M6CT630T6AR63063088896732080.321
M4CT645ET4AR645E645929241514440.72
M4CT1037T4AR1037103778794912750.486
M5CT1037ET5AR1037E1037989951093430.487
M4CT1134T4AR1134113452.552.54531800.25
M3CT1242ET3AR1242E124262.462.43992860.41
M4CT1242T4AR1242124283.582.541243820.62
M5CT1242ET5AR1242E1242104.610351484770.75
M5CT1242T5AR12421242104.6103.651484770.776
M6CT1242ET6AR1242E1242125.7124.761705730.9
M4CT1858T4AR18581858100.510142037291.426
M5CT1858X2T5AR1858X21858107.5107.552379741.61
M5CT1858T5AR18581858126126.551937281.787
M4CT1860T4AR18601860100.510141826341.62
M6CT1872X2T6AR1872X21872172172647119313.3
M6CT1872T6AR18721872172172.8656218293.51
M7CT1880T7AR18801880200200757727726.83
M7CT18100T7AR181001810026626671023456011.43
M8CT18100T8AR181001810030430481175458613.03
M3CT1949ET3AR1949E19496766.531133580.5
M4CT1949ET4AR1949E194988.588.541414770.74
M4CT2047T4AR20472047787941154120.67
M5CT2047T5AR20472047989951375150.834
M4CT2060T4AR2060206010110141758101.62
M5CT2262T5AR2262226211011052631511.78
M6CT2262T6AR22622262132132629815312.1
M4CT2264T4AR22642264101102.541756101.7
M4CT2264ET4AR2264E2264101102.542219211.527
M5CT2264T5AR22642264127128.5526211512.065
M5CT2264ET5AR2264E2264127128.5526311511.94
M6CT2264ET6AR2264E2264153154629813512.234
M6CT2264T6AR22642264153154.5629813512.5
M4CT2362T4AR23622362105104.541766521.63
M3CT2385T3AR238523859796.5335415443.118
M4CT2385T4AR23852385129.5129444320594.152
M5CT2385T5AR23852385162161.5552825745.143
M6CT2390T6AR23902390209.75209.75670030297.75
M3CT2468T3AR24682468707031767721.4
M5CT2468T5AR24682468118119526212872.32
M6CT2552T6AR2552255212412461636691.36
M8CT2552T8AR2552255216516582048921.68
M5CT2577T5AR25772577134134533716713.48
M4CT2598T4AR25982598149.5150454724208.3
M6CT25105T6AR25105251052342346893435611.9
M7CT25105T7AR251052510527327371008508213.7
M3CT2866T3AR286628668281.532037131.054
M4CT2866T4AR28662866107.5106.542549501.74
M6CT2872T6AR28722872150150638317743.2
M5CT2876T5AR28762876135132.5542816643.199
M8CT2890T8AR28902890281281875533798.82
M3CT2990T3AR299029909898334915443.48
M4CT3068T4AR3068306810099.542519501.79
M4CT3073T4AR3073307312012241937222.48
M4CT3073ET4AR3073E307312212042489502.255
M5CT3073T5AR30733073151153529511883.103
M5CT3073ET5AR3073E3073151153531412872.88
M6CT3073T6AR30733073182184633914263.72
M4CT3075YBT4AR3075YB3075112103.542489502.29
M4CT30100T4AR3010030100150.5151443724206.58
M6CT30127T6AR3012730127288286.561263614821.7
M8CT30127T8AR301273012737237281580819730.97
M2CT3278T2AR3278327857.55322096662.54
M4CT3278T4AR32783278110.5106435813312.58
M5CT3278T5AR32783278137132.5542616643.22
M3CT33105T3AR3310533105115115.5346119975.42
M4CT33105T4AR3310533105150.5151457726627.11
M4CT3495T4AR34953495130130441019015.166
M5CT3495T5AR34953495163163548823766.43
M6CT3495T6AR34953495196196660823957.28
M8CT3495T8AR34953495262262870338021.68
M5CT36120T5AR36120361201971975946464011.19
M4CT38150T4AR3815038150213214.541187525921.7
M6CT38160T6AR381603816036036061761887440.8
M3CT40110T3AR4011040110123123351623606.264
M4CT40110T4AR4011040110164164464531468.33
M4CT40127T4AR40127401271771774885438713.3
M2CT88.9190.5T2AR88.9190.589190.5107.95107.9521182442714.4
M2CT145385T2AR1453851453852332272377319958147.7
